Description
PLEASE CALL 386-698-4414 OR EMAIL ORDERS@MELRAY.COM FOR PRICING AND LEAD TIMES

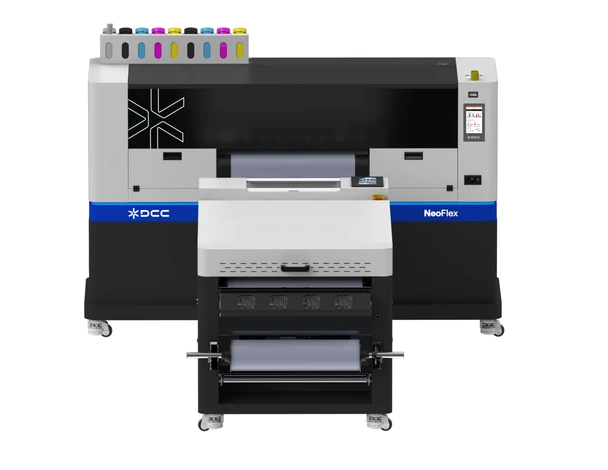

The DCC NeoFlex F‑51300+ Pro is a fully integrated, commercial direct‑to‑film (DTF) printing systemthat combines the printer, automated powdering, shaker, curing dryer, and dual HEPA/carbon filtration into one high‑speed, steel‑framed production unit.
What it is
A commercial DTF ecosystem is engineered as a single machine rather than a mix‑and‑match setup. It integrates printing, powder application, curing, and air filtration in one chassis, reducing alignment issues and simplifying workflow.
Key capabilities
-

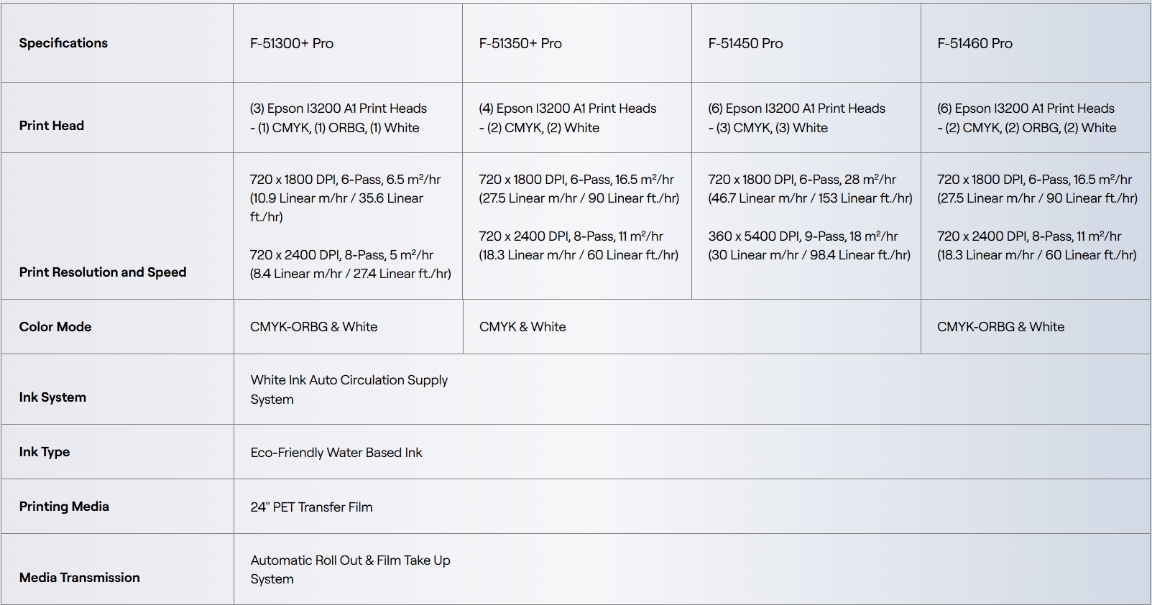

Print engine: Three printheads in a CMYK + ORBG + White configuration, producing (10.9 Linear m/hr / 35.6 Linear ft./hr
-
Integrated powder & cure: Automated powder dispenser, shaker, and curing dryer built into the same frame for consistent adhesive coverage and stable curing
-
Air handling: Dual HEPA + carbon filtration built in—no external fume extractor required
-
Film handling: Weight‑balanced rollers and automated pinchers to maintain tension and reduce wrinkles or slippage
-
Software: NeoFlex RIP with automated nesting, spot‑color tools, variable data, and barcode/QR‑based job routing
What makes it different
-
One‑piece steel chassisfor stability and long‑run printhead alignment
-
Modular upgrade path:DCC upgrades performance modules as volume grows—no need to replace the entire printer
-
In‑house consumables:DCC manufactures its own inks, films, and powders, profiled specifically for the system
Ideal for
Shops bringing DTF production in‑house or scaling up from outsourced transfers, especially those needing predictable output, integrated filtration, and a machine that can be upgraded rather than replaced.
